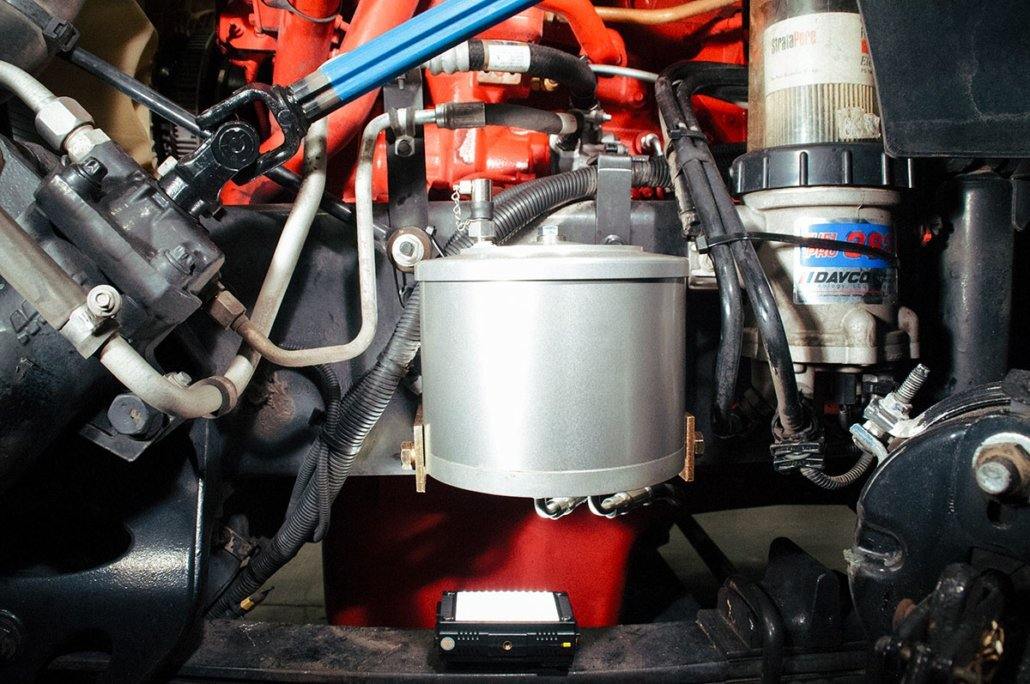

Caterpillar C15 Bypass Oil Filter Kit

Caterpillar C15 Bypass Oil Filtration Kit

Parts Included In This Kit

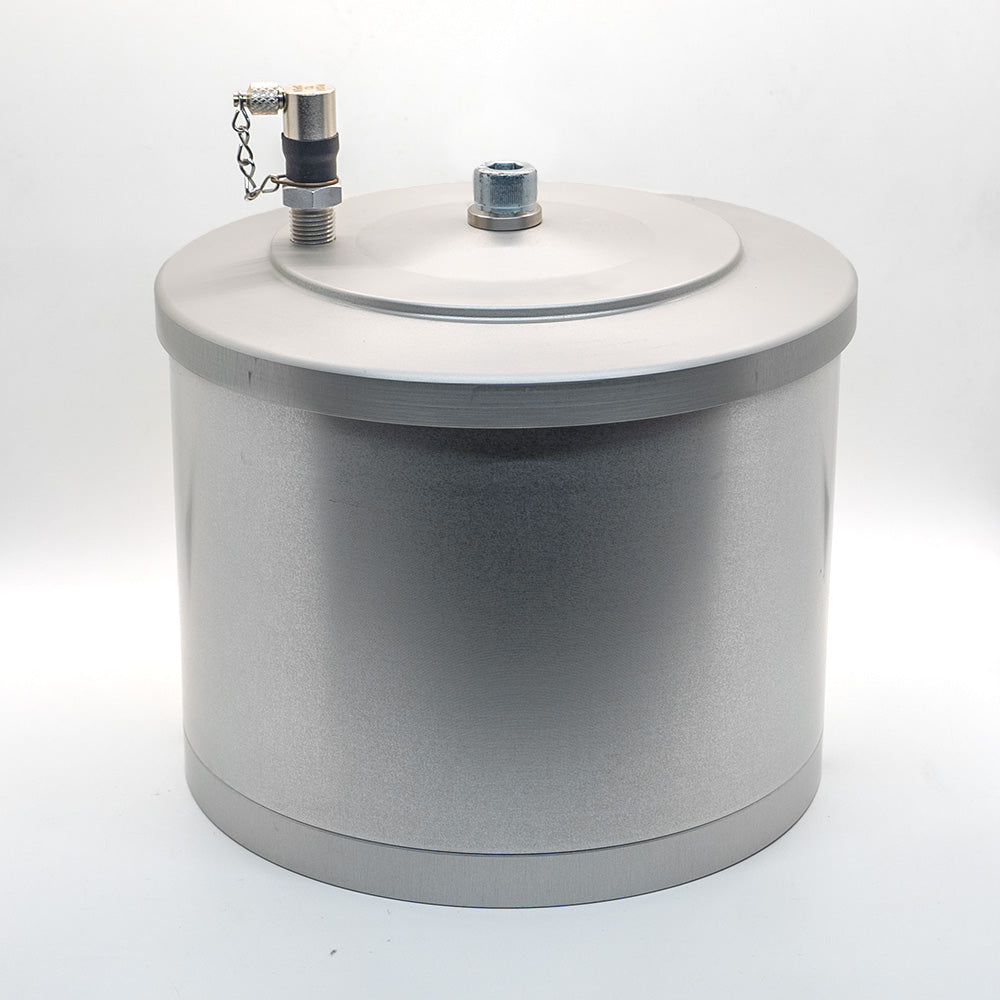

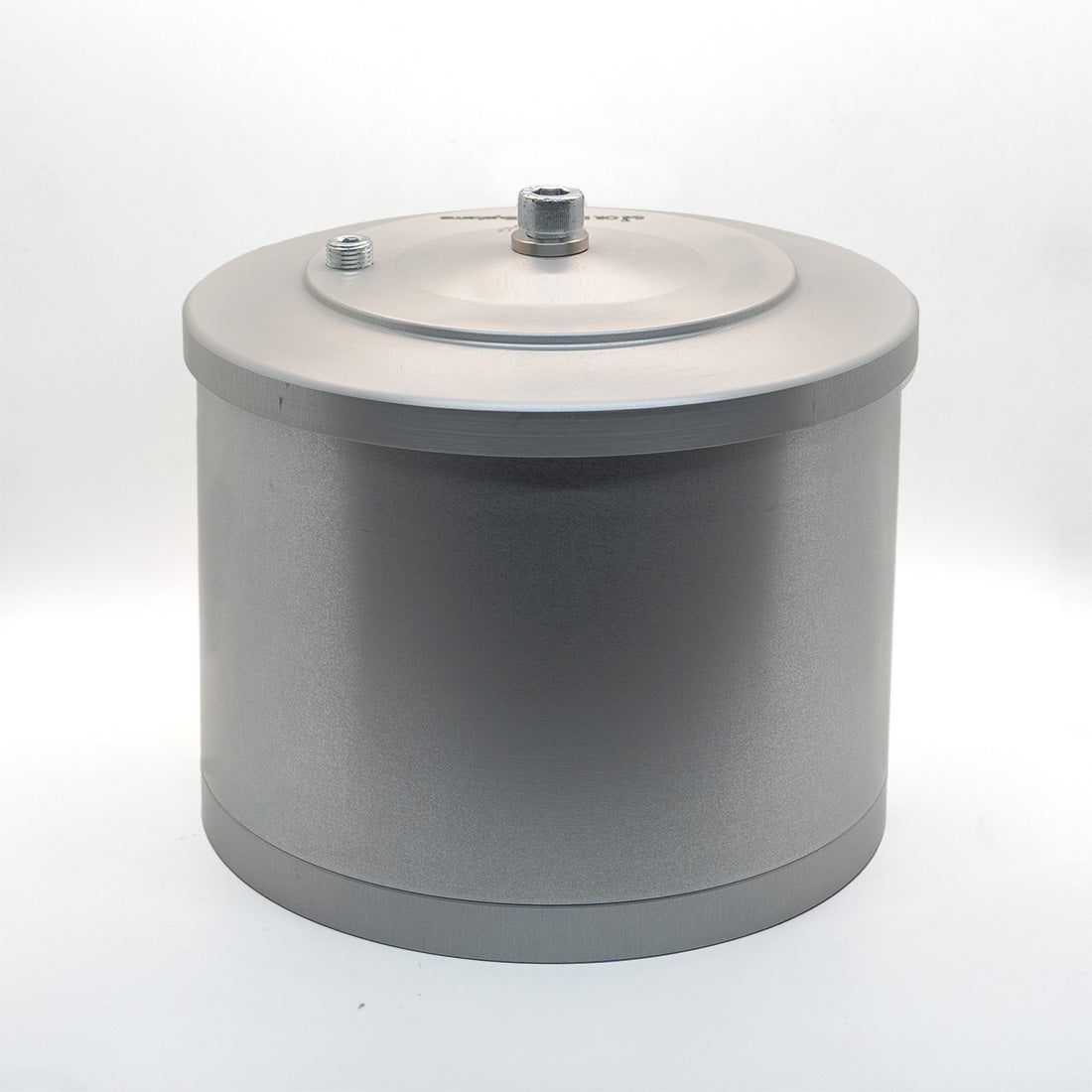

• 1 EXTREME 4 filter housing (HX4XLH)
• 1 EXTREME 4 filter element (EX4XLE) with o-rings (GX4)
• 2 In/Out housing fittings (ANMJ06-7-16-20OR90)
• 1 Mounting bracket and bracket hardware (ZBRCKX14)
• 1 hose to pressure fitting (AN06-06FJ)

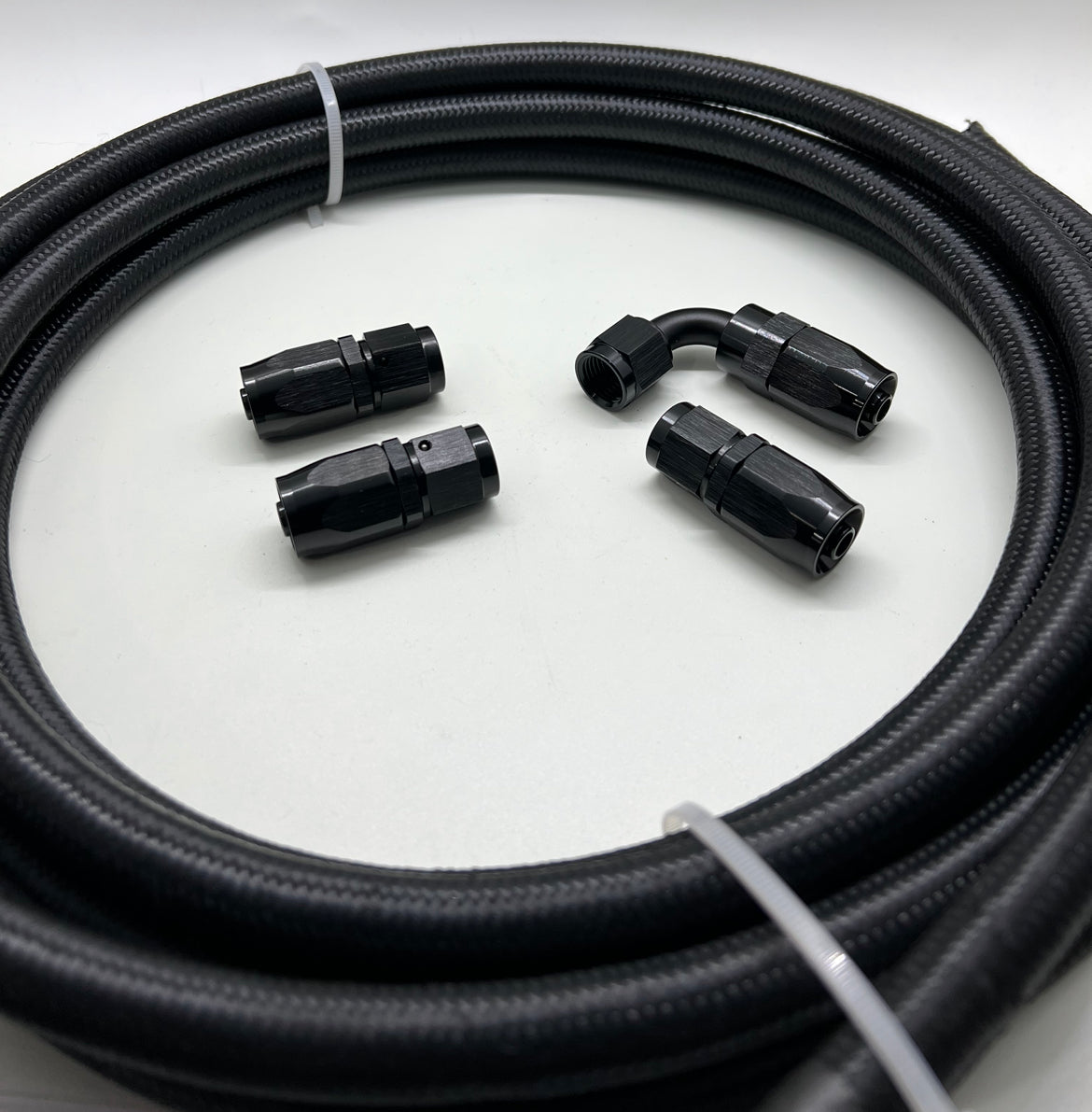

• 12ft of hose to be cut to your preference (LW06BK)

Pressure and Return Port Options:

CAT 6NZ

• CAT 6NZ Pressure Port Options (years 1999 - 2003.5):
  • AN06-04MP (oil filter housing)
  • AN06-06MP (rifle plug)


• CAT 6NZ Return Port Details:
  • 1 Return port fittings (MP08-04BR)+(AN06-04MS90)

CAT ACERT

• CAT ACERT
  • AN06-06ORB (rifle plug)
  • AN06-08ORB (oil filter housing)

• CAT ACERT Return Port Details:
  • 1 Return port fittings (MP08-04BR)+(AN06-04MS90)

Optional accessories:

• Oil sample pump $99.99
• Exteme4 filter element
• Crimped hose can be ordered separately (contact us to add to your order)

Possible Port Locations:
