Ford 7.3L Godzilla | 6.8 Mini-Zilla Bypass Oil Filter Kit

Ford 7.3L Godzilla | 6.8 Mini-Zilla Bypass Oil Filter Kit

$694.52 USD
$694.52 USD
Sale Sold out
Filter Color
Mounting Options
Oil Filter Sandwich Adapter Kit

Ford 7.3L Godzilla | 6.8 MiniZilla Bypass Oil Filter Kit

Years: 2020 to PRESENT

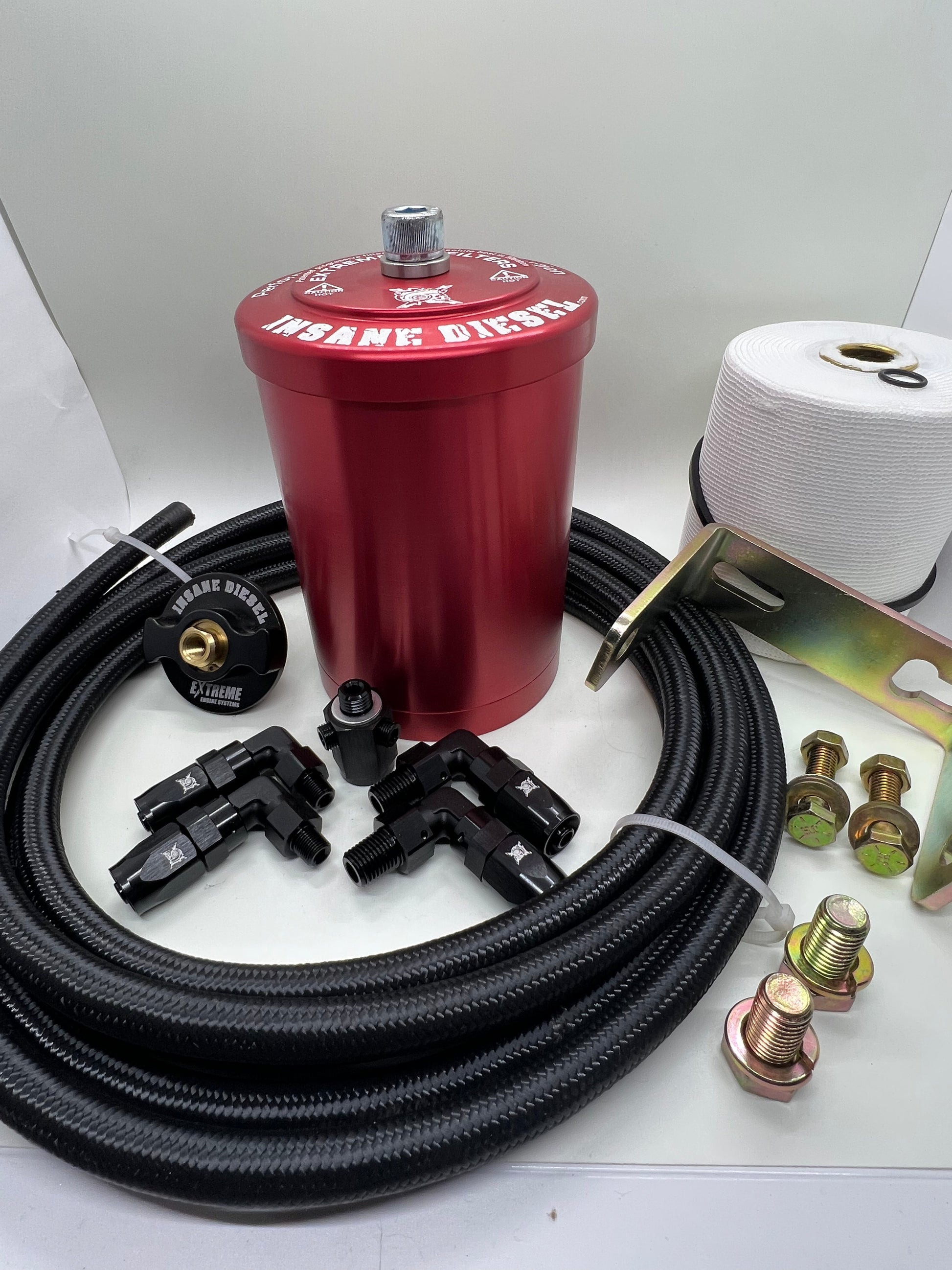

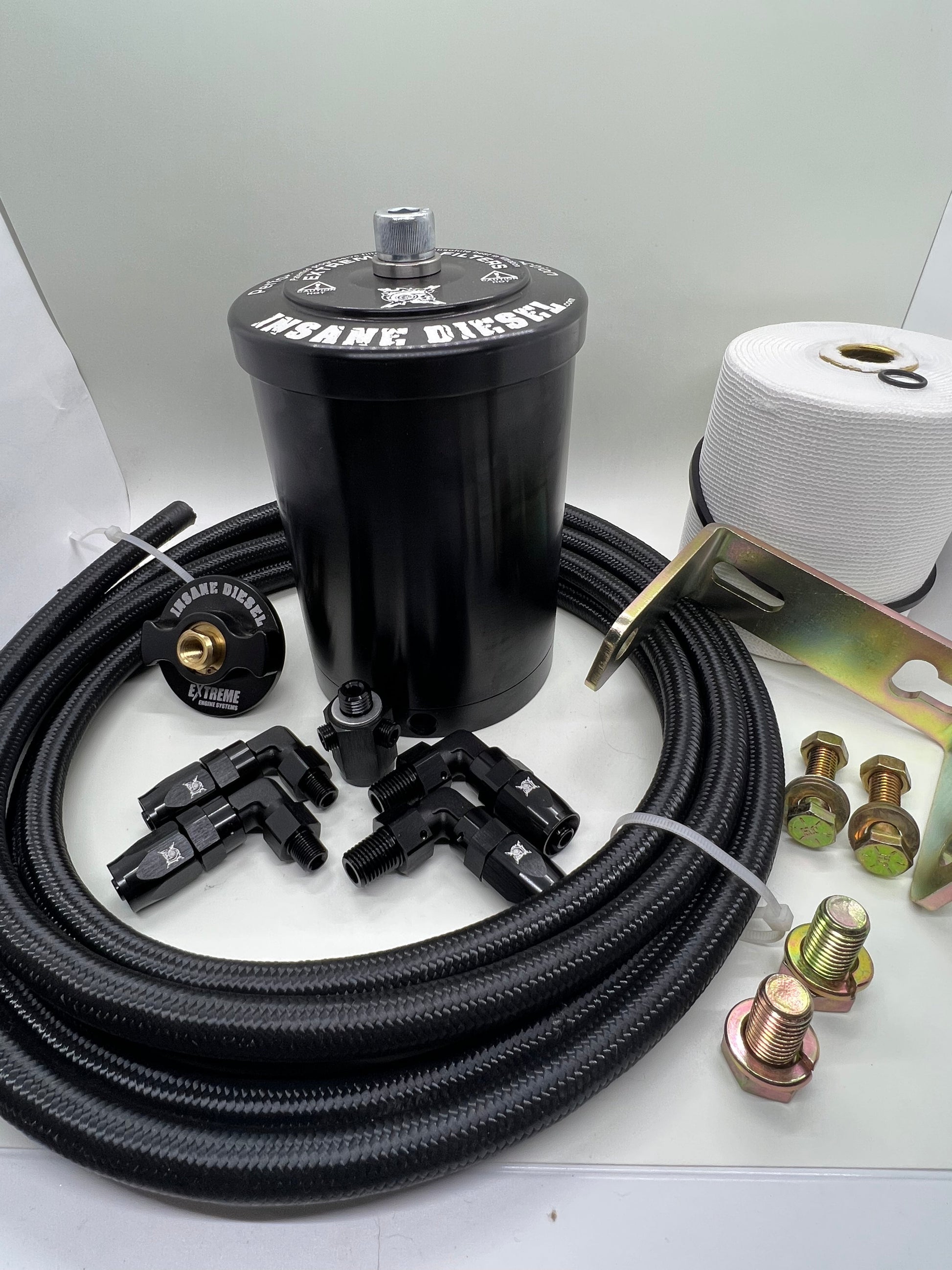

Parts Included In This Kit

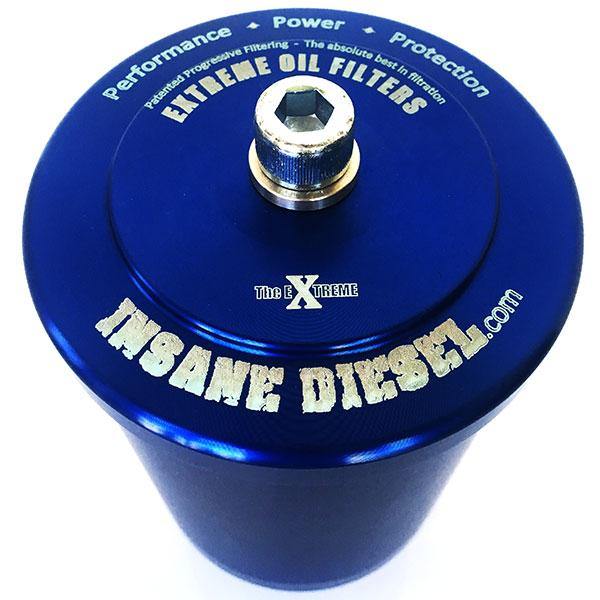

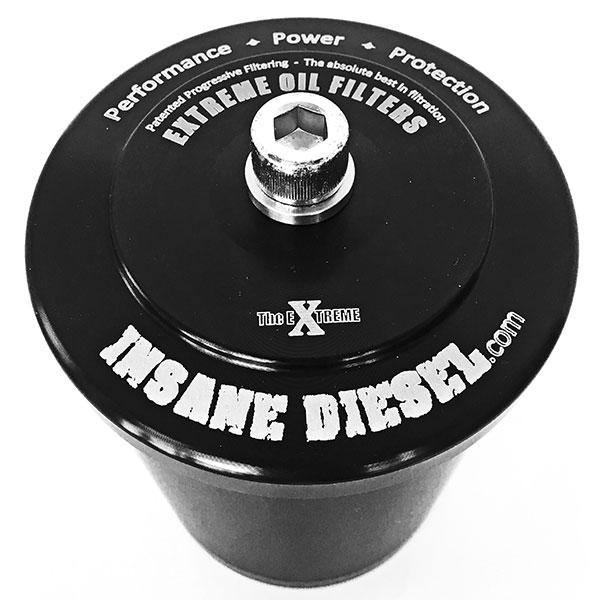

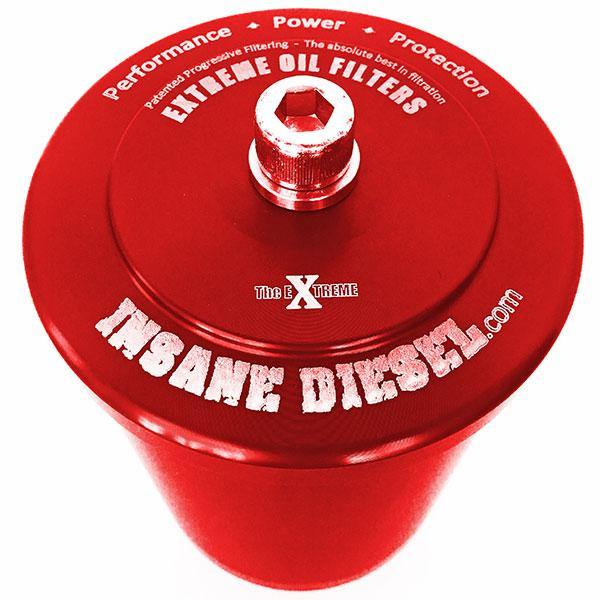

  • 1 EXTREME2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
  • 1 EXTREME2 filter element (EX2ME) with o-rings (GX1/2)
  • 2 In/Out fittings (AN06-04MS90)
  • 15’ of hose to be cut to your preference (LW06BK)

Pressure Port

  • 1 Tee fitting system (TM1215B) with washer (D12) and fittings (AN06-02MP90 + AN06-06FJ)

Return Port

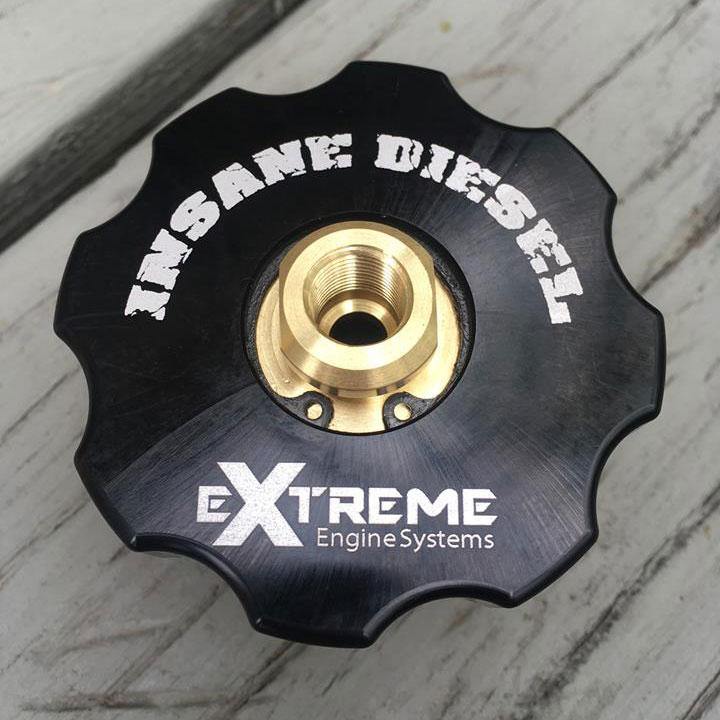

  • 1 Oil filler cap with swivel return port (FLLC35FO) with o-ring (O35FO) and fitting (AN06-02MS90)

Mounting Options

Standard Frame Mount Bracket
(for vehicles without auto powered running board)

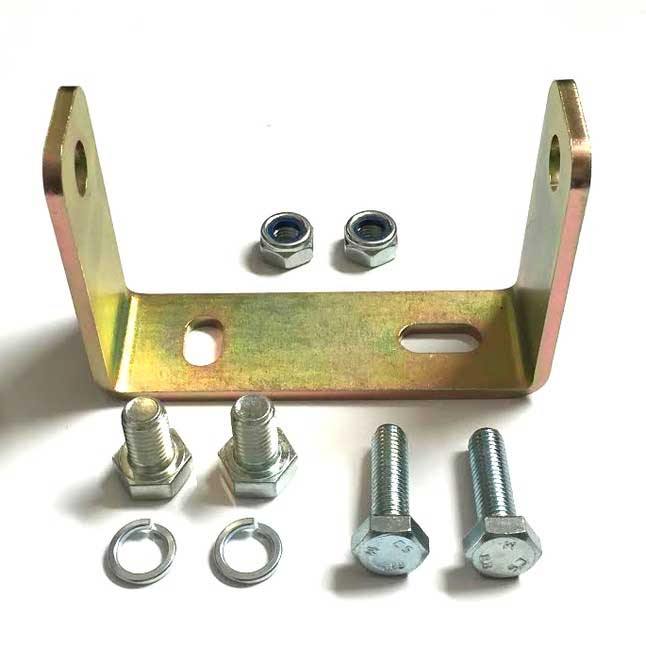

  • 1 Mounting bracket with hardware (ZBRCKX12)

Auto Powered Running Board Frame Mount
(use to avoid auto running board retraction area)

  • 1 Mounting bracket with hardware (AUTO67RNNG) *No hardware included. Requires 2 Ford part# 5579111 and 2 Ford part# 5400728.

Recommended Option

Add Oil Filter Sandwich Adapter Kit

Best for: Most customers, DIY installers, and professional shops.

Why choose it:

  • Easiest pressure-port connection option
  • Avoids the hard-to-reach factory pressure-port location
  • Reduces labor time by an average of 2–3 hours
  • Save $75 when added to this kit instead of purchased separately
  • Recommended as the standard choice for new installations

Premium Insane Diesel design:

  • Dual-seal design: aluminum-to-aluminum sealing plus an O-ring
  • Machined from T6 billet aluminum
  • Black-anodized finish
  • Custom Insane Diesel engraving

Includes:
1 Ford 7.3 Godzilla + 6.8 Mini-Zilla Sandwich Plate & Thread Extension (SAN4GZLA)

Important: This option has specific installation and maintenance requirements. Review the notice below before installation.

If you select the Sandwich Plate with Thread Extension Kit, follow these requirements along with the complete instructions supplied with the product:

During initial installation: Clean the Thread Extender, apply Blue Loctite 242 or an equivalent threadlocker, then torque the Thread Extender to 35 ft-lb.

At every oil-filter change: Check that the Thread Extender is torqued to 35 ft-lb.

If the Billet Oil Filter Sandwich Plate is ever removed: Replace the O-ring before reinstalling the plate.

Installation Video



BENEFITS OF ULTRA-FINE OIL FILTRATION

• Radically extend engine life 2X
• Reduce engine wear
• Keep oil up to 4X cleaner than new oil
• Progressive 3 stage filtration down to 1 micron, won't clog or drop efficiency like others filters
• Reduce soot and carbon buildup
• Reduce erosion of hoses & seals
• Extend oil change intervals
• Remove 99.9% of moisture
• Improve gas mileage
• Improve oil cooling
• Large housing holds 4000X more contaminants than OEM filters
• Easy installation and maintenance
• 15K (or up to *25K miles) 250 hours, or 1 year before maintenance is needed
• *Condition based oil analysis monitoring recommended when extending oil/filter change intervals

 Learn More About the EXTREME Bypass Oil Filter System Here


  1. *must be installed by a certified professional
  2. *aluminum straight thread fittings are 60 INCH lbs of torque maximum.
  3. *aluminum tapered thread fittings are 122 INCH lbs or 11 FOOT lbs of torque maximum.
