Ford 7.3L Power Stroke Bypass Oil Filter Frame Mount Kit

$564.22 USD

Sale Sold out

Options RED BLUE BLACK

Return Port Fitting Standard Return — Recommended Default 90-Degree Elbow Return

Ford 7.3L IDI & Power Stroke® Bypass Oil Filter Frame Mount Kit (1988–2003)

This frame-mount kit includes the primary components needed to install an Insane Diesel EXTREME 2 bypass oil filtration system on compatible Ford 7.3L IDI and 7.3L Power Stroke® engines from 1988–2003.

Fitment and Required Additional Fitting

This kit is compatible with:

Ford 7.3L IDI engines
Ford 7.3L Power Stroke® engines
Applicable model years from 1988–2003

Important for 7.3L IDI and E-Series/Econoline installations:

If you are installing this kit on either of the following applications, you must also purchase the E452MF fitting separately to simplify the pressure-hose connection at the engine:

Any Ford 7.3L IDI application
Any Ford E-Series/Econoline van application

The E452MF is not included with this kit and must be added to your order separately: Link to E452MF

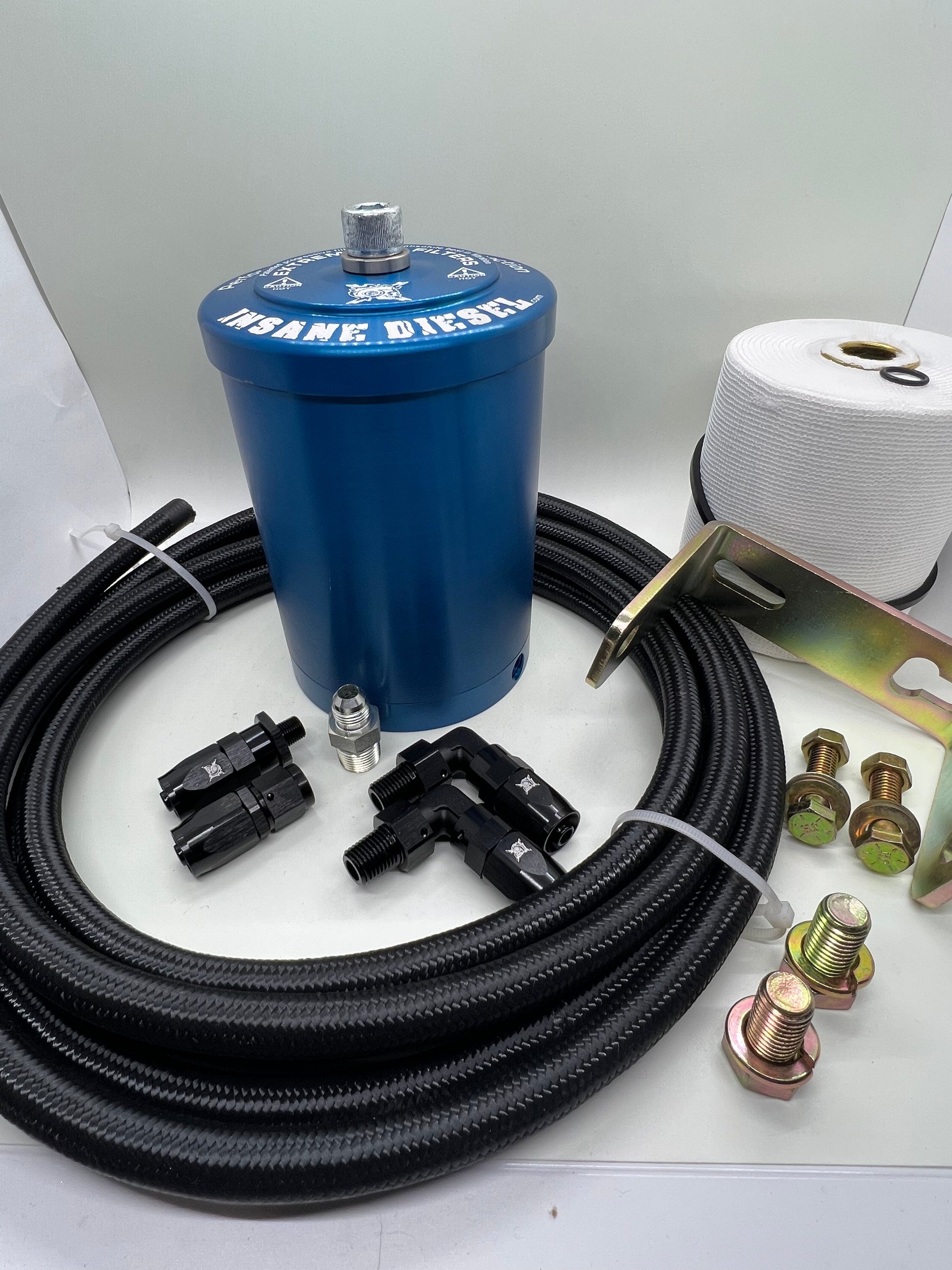

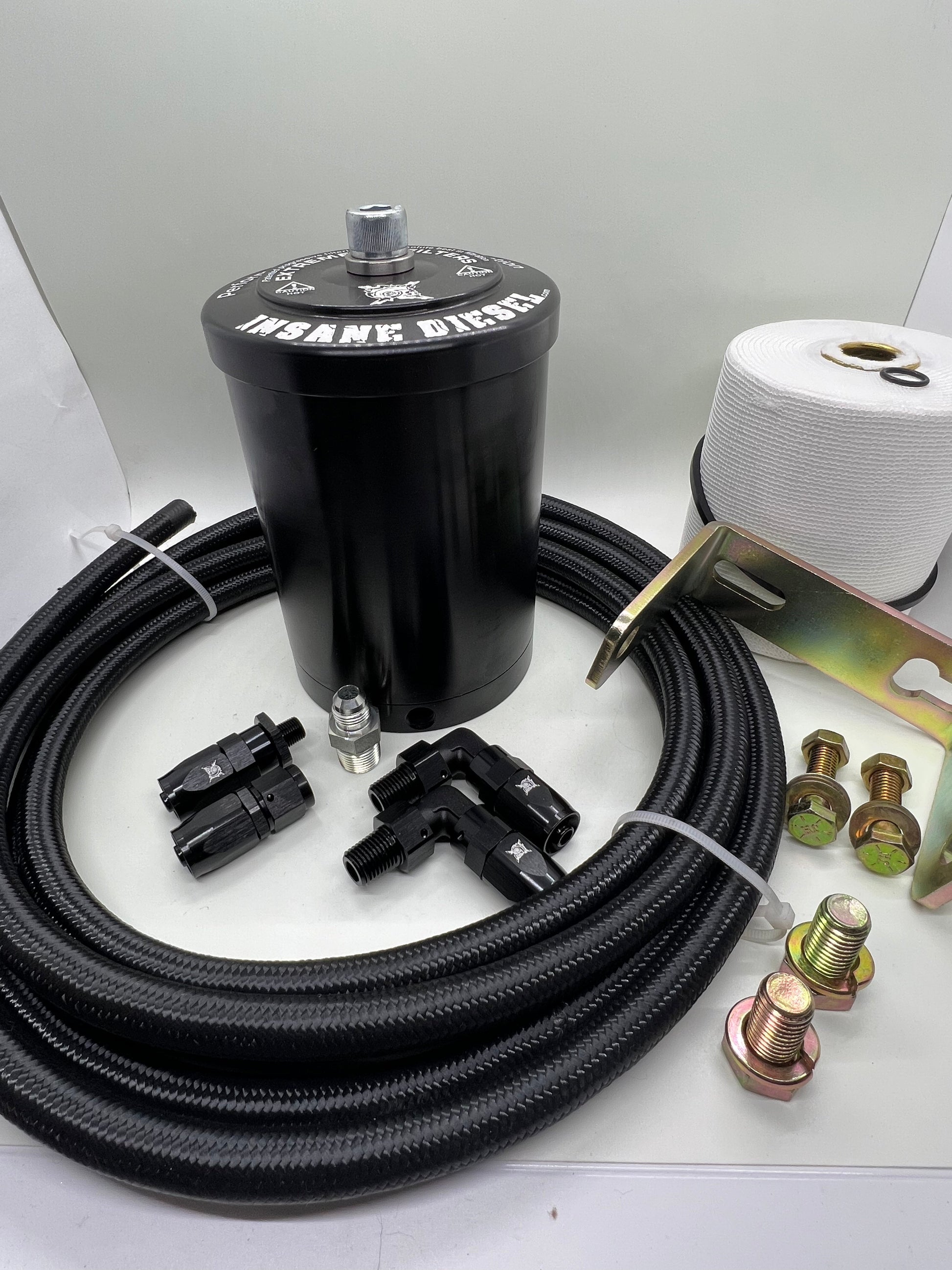

Parts Included in This Kit

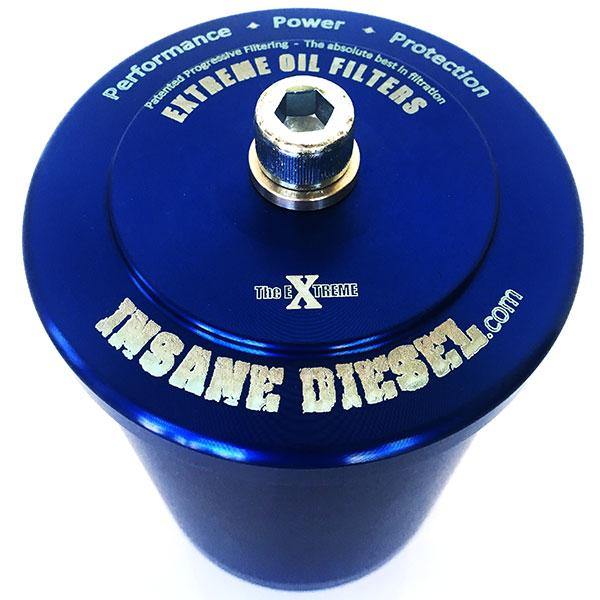

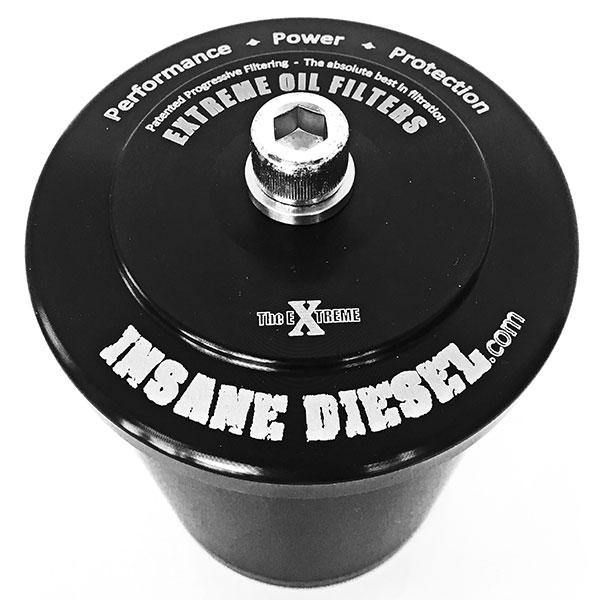

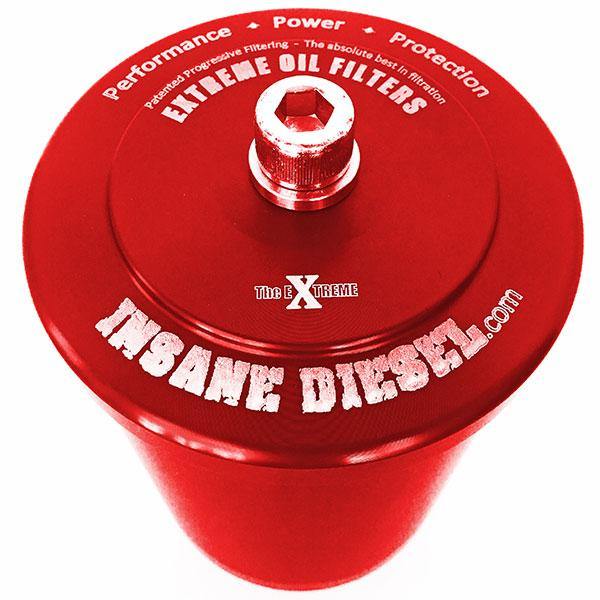

1 EXTREME 2 bypass oil filter housing (HX2SHBK, HX2SHBLU, or HX2SHRED)

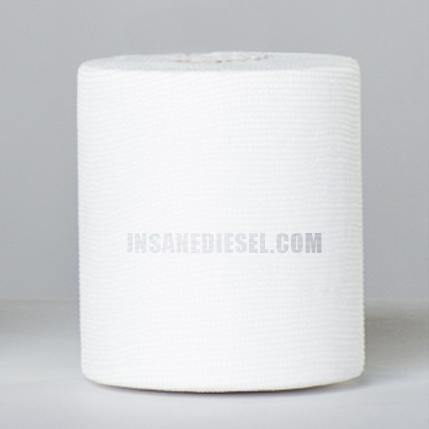

1 EXTREME 2 filter element (EX2ME) with O-rings (GX1/2)
2 Inlet/outlet fittings (AN06-04MS)
1 Pressure port fitting (AN06-02MS)
9 feet of hose (LW06BK)
Hose ships uncut as one continuous 9-foot length so it can be divided and routed according to the selected mounting location.

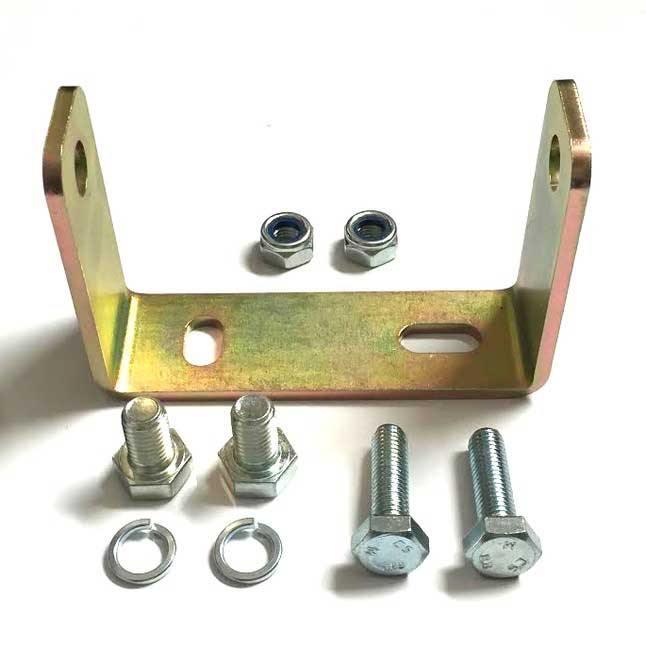

1 Mounting bracket with hardware (ZBRCKX12)
1 Selected oil return port fitting

Choose Your Oil Return Fitting

Not sure which option to select? Choose the Standard Return.

The Standard Return is the recommended option for most installations. It is the primary configuration shown in our current installation guide, video, and product imagery.

Standard Return — Recommended Default

Select this option when you do not have a specific hose-routing preference. The straight fitting allows the return hose to run directly away from the return port and works well for most typical installations.

1 Straight return port fitting (AN06-06MS)

90-Degree Elbow Return — Optional Routing Choice

Select the elbow fitting when you prefer the return hose to immediately turn 90 degrees after leaving the return port. This option was added for customers who want to route the hose in a different direction or need additional flexibility around nearby components.

The elbow option does not change the filtration system or its performance. It only changes the direction of the return hose connection.

1 90-degree return port fitting (AN06-06MS90)

Power Stroke® Installation Guides

The current installation resources below demonstrate Ford 7.3L Power Stroke® installations. Installation details and pressure-hose routing may differ for 7.3L IDI and E-Series/Econoline applications.

Primary Installation Video:
Ford 7.3L Power Stroke® Installation Video

Additional Legacy Installation Resources:

Installation and assembly must be completed by a certified mechanic.

Benefits of Ultra-Fine Oil Filtration

Radically extend engine life up to 2X
Reduce engine wear
Keep oil up to 4X cleaner than new oil
Progressive three-stage filtration down to 1 micron
Designed to resist clogging and efficiency loss
Reduce soot and carbon buildup
Reduce erosion of hoses and seals
Support extended oil change intervals
Remove 99.9% of moisture
Improve fuel mileage
Improve oil cooling
Large housing holds up to 4,000X more contaminants than OEM filters
Easy installation and maintenance
Service interval of 15,000 miles, or up to 25,000 miles based on operating conditions, 250 hours, or one year
