GM 6L50 Transmission Kit (2015-2022)

Optimize your transmission's performance with our GM 6L50 Transmission Kit, featuring the same Extreme filter used for oil filtration. Our kit provides progressive ultra-fine filtration for your transmission fluid, significantly enhancing the longevity and efficiency of your vehicle's transmission system. Experience smoother gear shifts and reduced wear and tear.

Parts Included In This Kit

• 1 EXTREME1 filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
• 1 EXTREME1 filter element (EX1SE) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 8ft hose to be cut to your preference  (LW06BK)
• 1 Mounting bracket with hardware (ZBRCKX12)

Pressure Port

• 1 Pressure port fitting (AN06-02MS90)

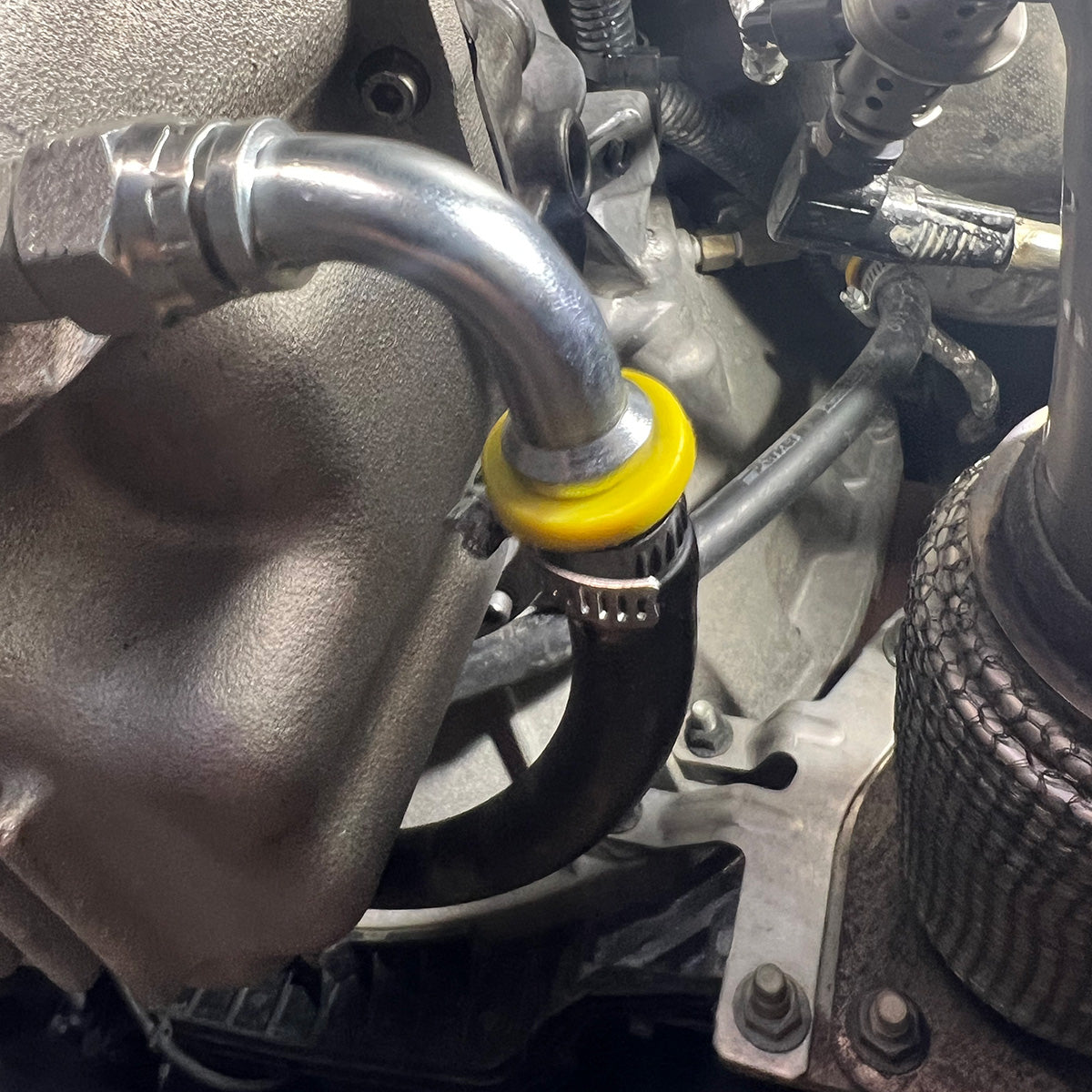

Return Port

• 1 Return port fitting (AN06-02MS90)

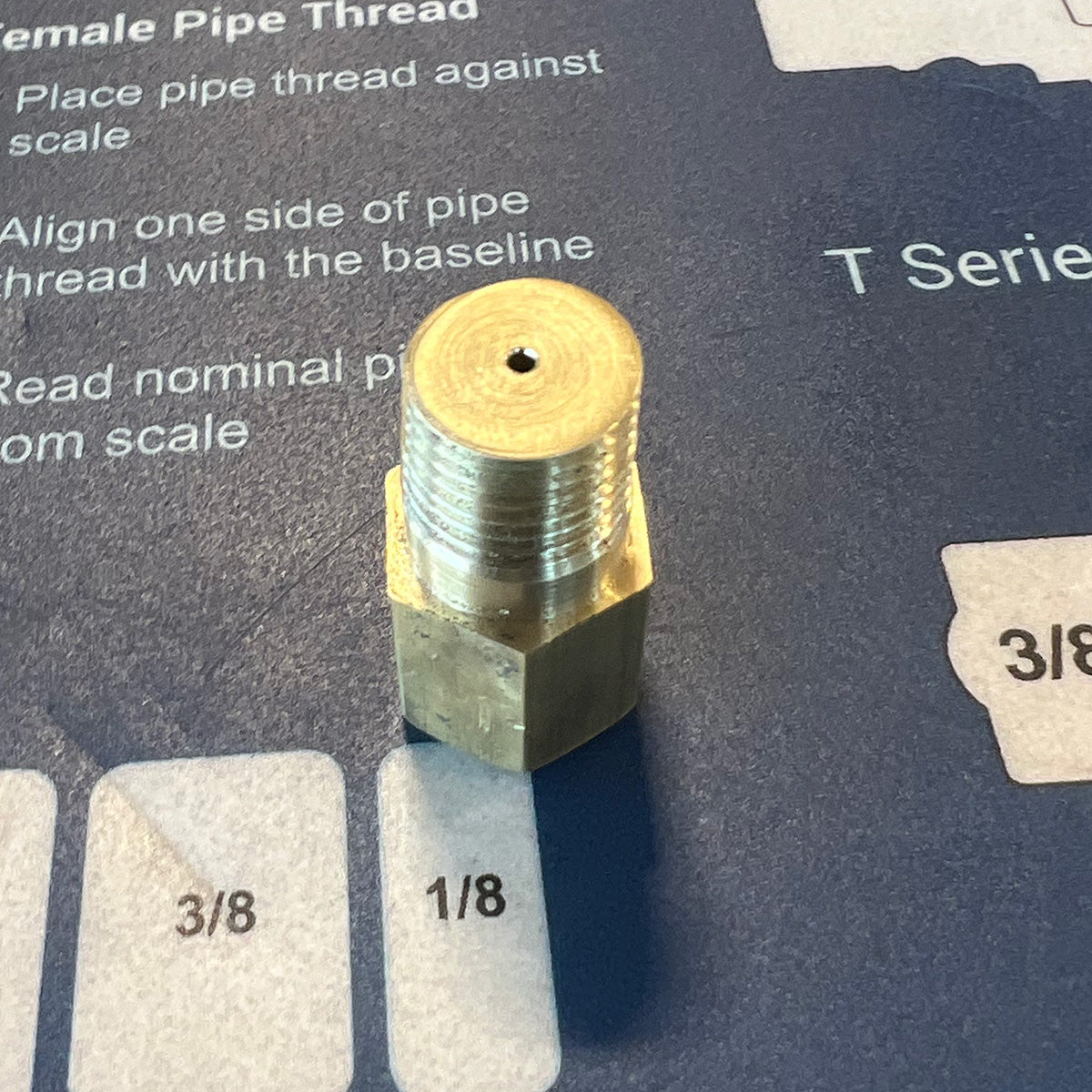

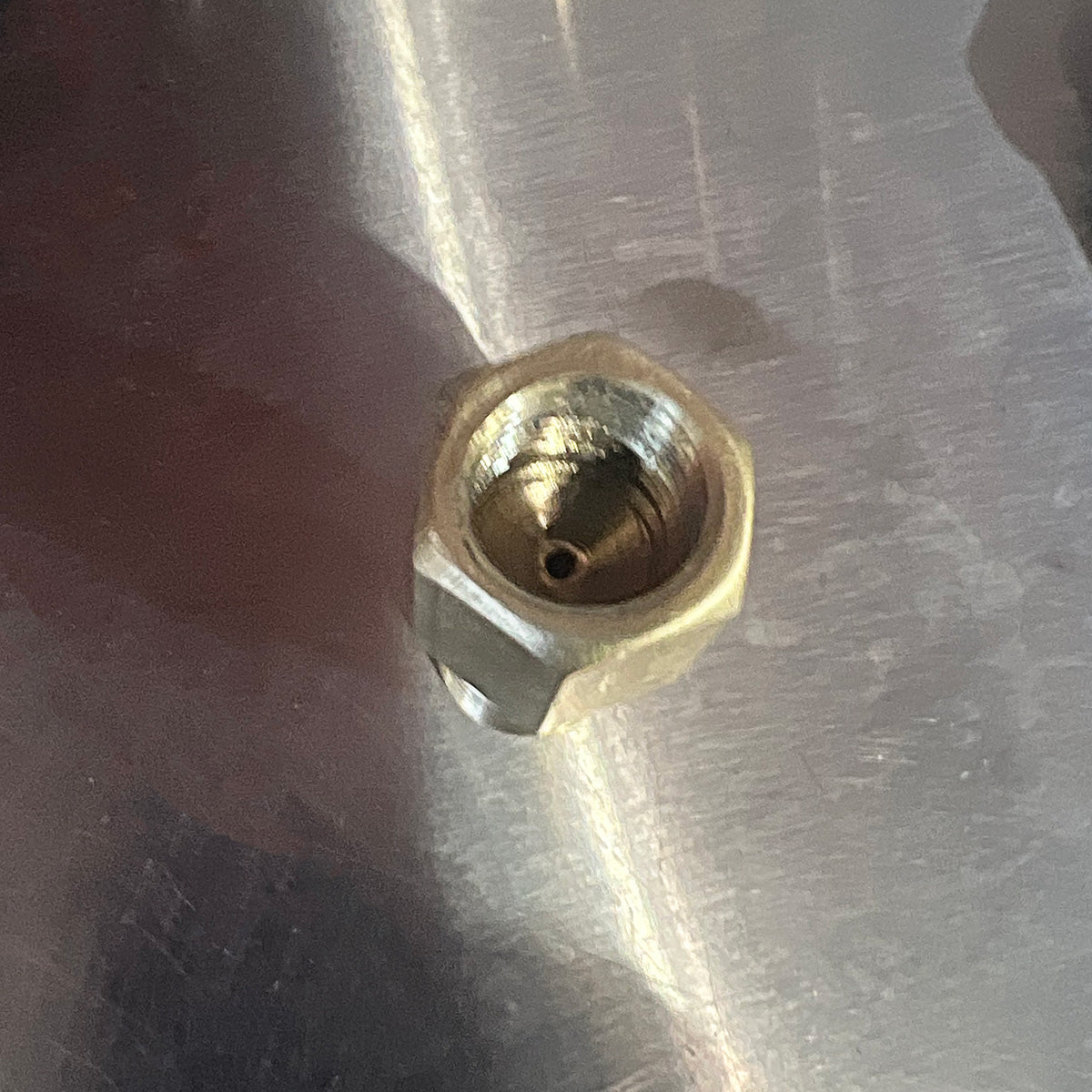

• 1 1/8 NPT restrictor (4NPTR) with 1mm port – restricts 120 PSI to 1.25 GPM

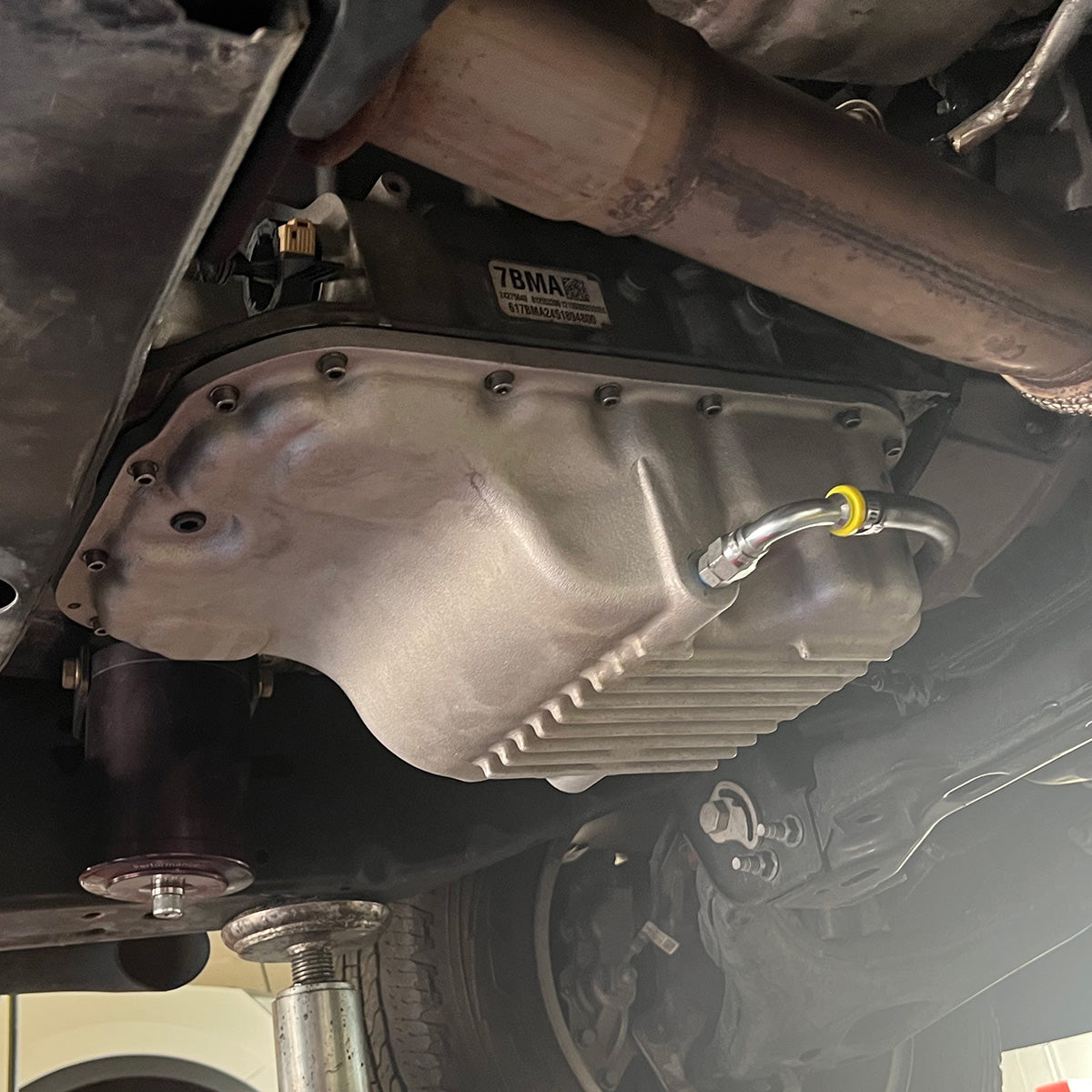

Note: Requires the PML Deep Transmission Pan for GM 6L50 (Part Number 11150, sold separately) for complete installation.

Installation Guide:
